Which stainless steel grades and standards does VertexFlow produce?

We produce welded tubing in 201 (high-copper), 304, 304L, 316 and 316L to ASTM A554 (ornamental / structural), ASTM A249 and A269 dimensional practice, plus EN 10217-7 and JIS G3446 equivalents on request. Each heat is supplied with a mill test certificate covering chemistry, tensile, elongation and flattening results.

What tolerances can you hold on welded stainless steel tube?

Standard outside-diameter tolerance is ±0.10 mm, and ±0.05 mm on precision runs for conveyor rollers and plating substrates. Wall thickness is controlled to ±8%, straightness to 1 mm/m, and squareness of square sections to ±0.5°. Roundness, diagonal, surface and straightness data are logged in-line on every mill.

Why do 304 tubes rust in coastal or bathroom environments?

Chloride ions attack the passive chromium-oxide layer of 304. For coastal, spa and outdoor shower projects we recommend 316L with 2-3% molybdenum, which passes more than 500 hours of neutral salt spray testing. We also pickle and passivate weld seams, because free iron left on the seam is the most common origin of tea-staining.

What is your minimum order quantity and lead time?

MOQ is 500 kg per size and finish for standard items, and 1 tonne for custom profiles or PVD colours. Typical production lead time is 15 days after artwork and sample approval; more than 500 existing roll-forming moulds mean most special shapes require no new tooling cost.

Can you supply cut-to-length, bent and punched tube instead of mill lengths?

Yes. In-house secondary processing includes CNC cutting, mandrel bending, end flaring, necking, punching, laser slotting and deburring, so furniture and hardware buyers can receive assembly-ready components rather than 6 m mill lengths.

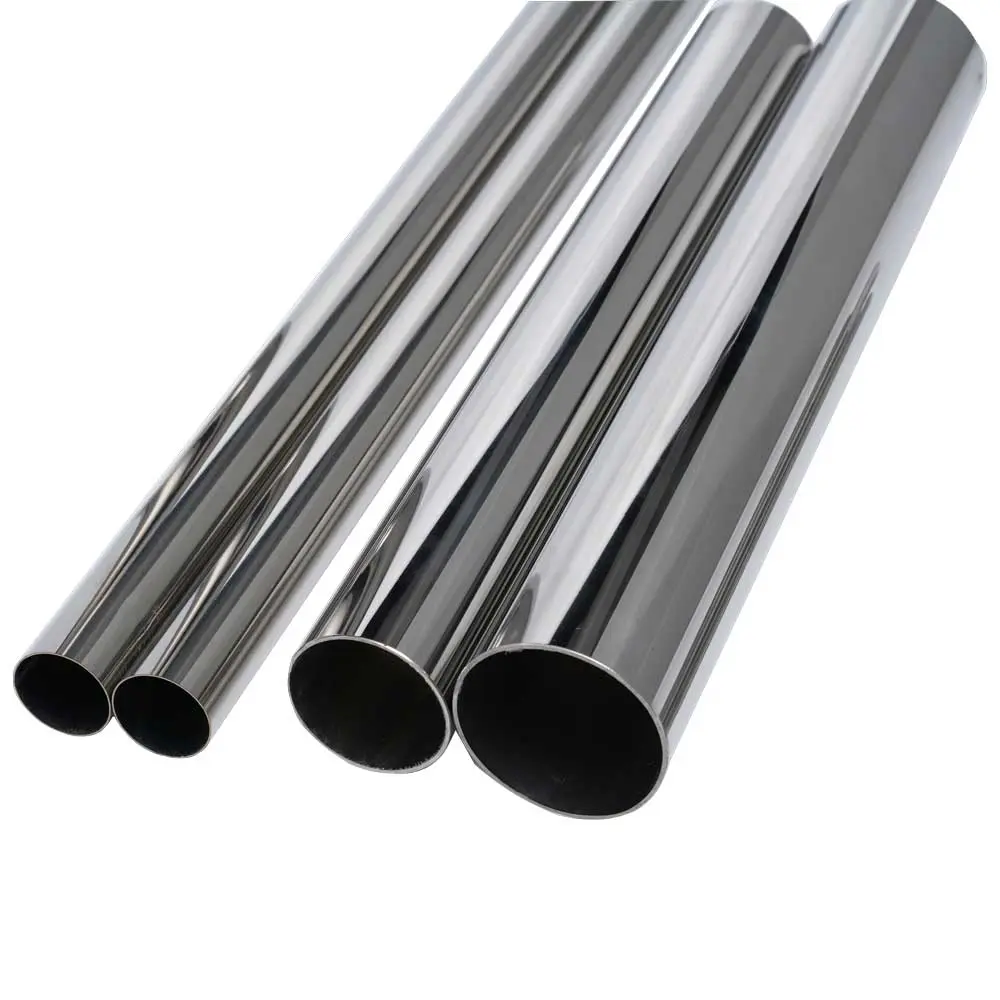

ODM Marine Grade 316L Stainless Steel Tubing Manufacturer, Suppliers

1 / 2

ODM Marine Grade 316L Stainless Steel Tubing Manufacturer, Suppliers

Rust-Proof Guarantee. 500+ Hours Salt Spray Test. For Coastal & Outdoor Showers.

Built for the Coast, Not Just the Bathroom.
Standard 304 stainless steel fails in coastal environments. The salt in the air and chlorine in pools cause "Tea Staining" (brown rust spots) within months.
Vertex Tubes offers authentic ASTM 316/316L Marine Grade tubing reinforced with Molybdenum (Mo > 2%). Whether you are manufacturing outdoor shower columns for a Maldives resort or handrails for a luxury yacht, our tubes withstand the harshest elements without pitting or tarnishing.

Send Inquiry

Product Description

Related Products

01 Precision Grade

Sanitary Grade Precision Stainless Steel Tubing

High Surface Finish & Corrosion Resistance

Frequently Asked Questions

What is Sanitary Grade Precision Stainless Steel Tubing used for?

It is extensively used in high-purity industries requiring strict hygiene standards, such as food processing, dairy, beverage production, pharmaceuticals, biotechnology, and fine chemical processing.

What features define a "sanitary grade" stainless steel tube?

Sanitary grade tubing features ultra-smooth internal surface finishes (low Ra values), precise dimensional tolerances, high corrosion resistance, and complete ease of cleaning to prevent bacterial growth and product contamination.

Which stainless steel material grades are available?

Common material grades include AISI 304, 304L, 316, and 316L. Grade 316L is typically preferred for applications requiring superior resistance to pitting and chloride corrosion.

How is the internal surface finish maintained and measured?

The internal surfaces are mechanically polished or electro-polished to achieve a smooth finish with Ra ≤ 0.4 µm (16 µin), complying with international sanitary standards such as 3-A, ASME BPE, and DIN 11850.

Is this precision tubing suitable for CIP (Clean-in-Place) systems?

Yes, the smooth, seamless interior design makes it fully compatible with Clean-in-Place (CIP) and Sterilize-in-Place (SIP) operations without disassembling the piping system.
